IV bag filling and handling

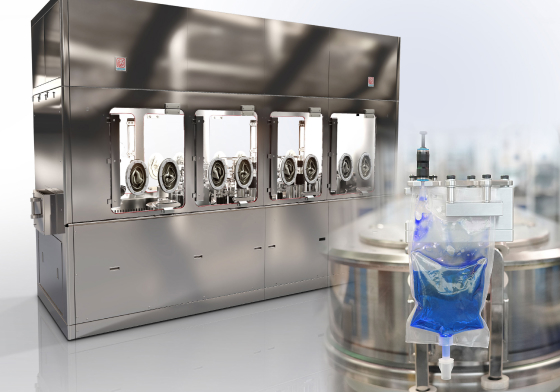

PharmaFlow Aseptic Bag Filling

ATS is your single source for aseptic bag handling, filling, and containment. Built on the proprietary SuperTrak PHARMA8™ platform, PharmaFlow™ delivers unparalleled performance, flexibility, and integrated Industry 4.0 data collection to scale.

DOWNLOAD FACTSHEET

Additional information

SPECS

Features

Single source solution for automation / isolation; built in North America and Europe with local service /support, maintenance, and spare parts
Reliable filling accuracy of every bag, reduced waste
Smart scalable conveyance technology with SuperTrak Pharma8™

Bag applications: IV, flexible, aseptic, infusion, combo, poly, dual chamber
Reduced facility classifications (Grade C/D vs. Grade B clean rooms)
Integrated Industry 4.0 data collection, connectivity and reporting from the entire system (automation, transport system

Recommended for

IV bags
Cryo bag handling and filling for Cell & Gene therapy
Aseptic bag handling, filling, and containment
Rapid Prototypes and POPs – Ability to immediately design, build and test with existing in-house platforms

Filling: Mass flow metered, or peristaltic
IV Bag sizes: 50 mL to 1000 mL
OEB Level: Up to OEB5
Fill Accuracy: +/- 1%
Speed: Up to 50 ppm

100% IPC check weighing
Installation Area: Grade C
Environment: Grade A

Options: Vacuum prep, gas purge, head space control, leak testing, vision inspection, check weighing, automated bag loading, BIBO filters, etc.

Learn More About Aseptic Filling Containment

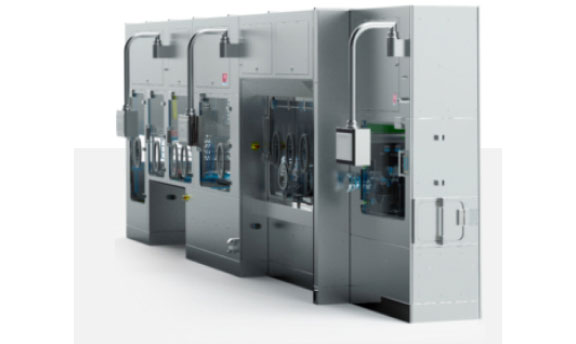

Comecer’s automatic aseptic filling line for IV bags is a high-speed turnkey solution that can process a variety of IV bag formats in both small and large batches. It uses isolation technology from start to finish to guarantee asepsis and containment. It provides complete separation between the process and the operator while reducing human intervention to a minimum. The filling line comes complete with in-line integrity testing.

VISIT COMECER

Learn More About SuperTrak PHARMA8^TM

Enables precise batch control with easily cleanable surfaces for wipe down and vaporized hydrogen peroxide (VHP) decontamination that will meet FDA and EMA requirements.

Maximum 8.5 kg shuttle payload
Grade A compliant platform
Save stations and repetitive tooling
Ideal for fill / finish applications

VISIT SuperTrak CONVEYANCE^TM

Resources

Production Performance Assessment

Maximize Your Investment

The first step to your best possible OEE. No matter what stage of the life cycle you are in, our team can help identify those factors preventing you from achieving targets.

LEARN MORE

ILLUMINATE™ Manufacturing Intelligence

Connected factory floor real-time IIoT manufacturing intelligence. Visibility into equipment performance: Monitors, compiles, stores, and reports on production data.

LEARN MORE

Project Management

Successful execution requires focus on project management discipline. You can count on us to support your project delivery needs until final signoff at your installation site.

LEARN MORE

Aseptic Bag Filling and Handling System

Fill / finish with precise batch control; custom solutions for unique or prototype products. ATS Life Sciences Systems is your single-source solution for aseptic bag filling and handling for IV and cryo applications.
