Low volume device assembly and trayhandling

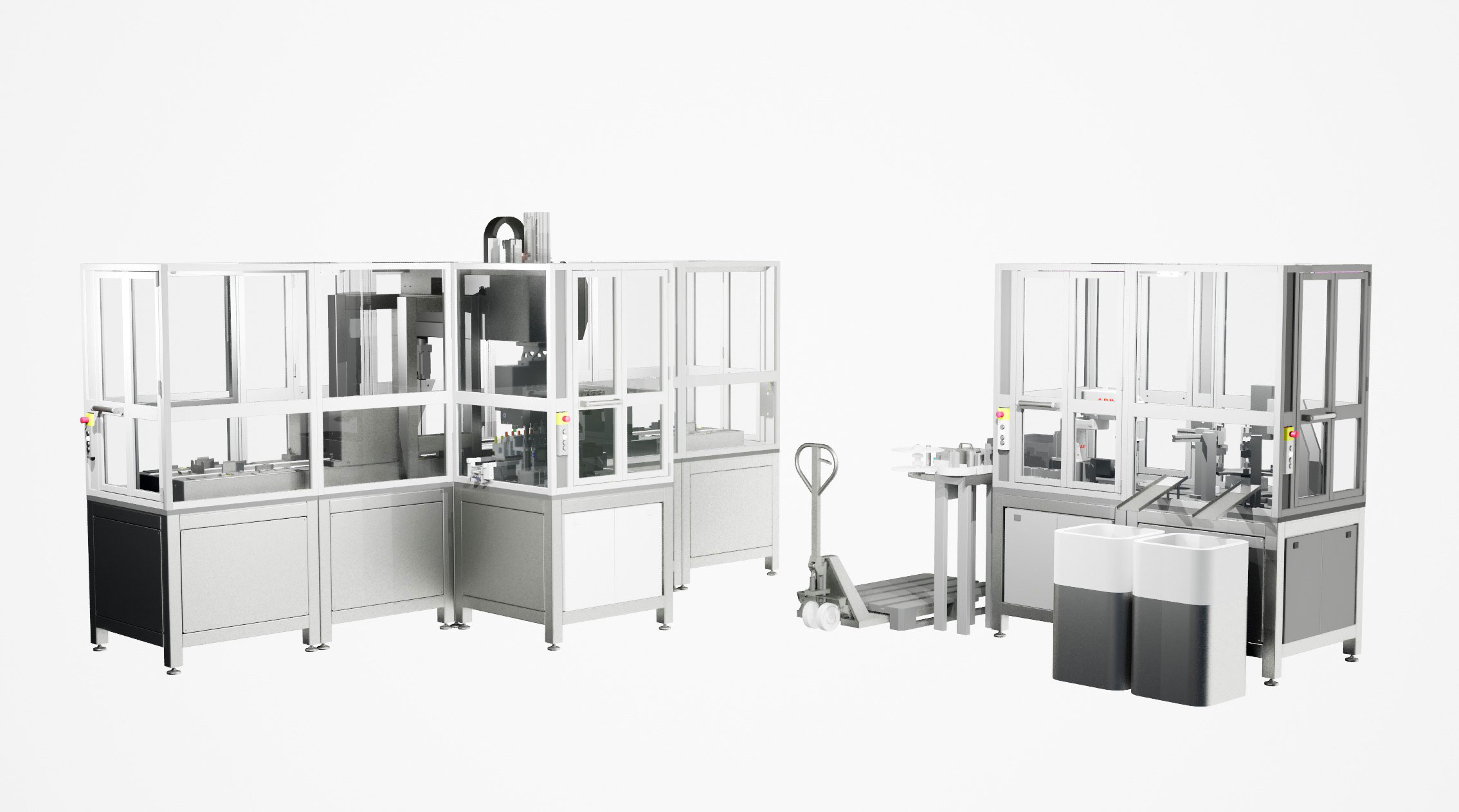

ATS SWIFTCELL™

Highly flexible modules providing the foundation for easy automated part handling and assembly of medical devices from clinical trials to commercialization

Learn more about Configurations

STANDARDIZED ASSEMBLY MODULES

Standardized assembly modules are designed to meet the highest regulatory standards

Low volume up to 20 ppm
Pick and choose modules for transport, infeed/outfeed, and process stations
Several vision inspection options available

Download Factsheet

Recommended For

Safety syringes

Inhalers

Autoinjectors

Contact lenses

Epipens

Many more…

Specs

Output rate:

Up to 20 ppm

Base module:

1000 x 1000 m

Part weight:

Up to 2 kg

Processes:

Assembly, Handling, Gripping, Inserting and/or Trayloading, Packing, and more

Transport style:

Robot, Dial, Belt and/or Conveyor

Infeed/outfeed:

Flex feeding, vibratory feeding and/or manual feeding

Vision:

Several options available

Validation:

Standardized documentation package

Software:

Illuminate^TM Manufacturing Intelligence

Key Features & Benefits

Flexible low volume manufacturing
Modular to allow for future expansion
Easy adaption due to fixed process grid dimension
Highly adaptable with new processes or repurposing for a completely new product

Cost effective solution due to standardization of modules
Fast to quote and shorter delivery times
Optimized small footprint with flexible module arrangement

Ramp-up support for initial phases of manufacturing
Proudly manufactured in Europe with worldwide support, ensuring top-notch quality and service
Processes adaptable throughout lifecycle

Configurable Platforms

70% is standard and 30% is customizable

Standard Module

Configurable Platform

Your Base Frame Features

Standard baseplate: 1m x 1m
LED-Status light: Quick identification of production status of each cell module (green/yellow/red)
Robots: Standardized to ABB robots
Touch panel: B&R HMI with IPC 21.5“ Siemens SIMATIC
Programming: TIA PORTAL
Electrics & Pneumatic: Located below base table plate
E-Control Cabinet Drawers: Extendable for better access

Configurable Platform

3×3 functionality grid: Use as a ´soft guideline´ for designers during the concept phase
Applications: Choose your MedTech device with up to 5 subcomponents like autoinjectors, pens, safety syringes, inhalers, and more.
Process stations: Pick and choose needed processes like loading, assembly, checking, inspection, force monitoring, screwing, labeling and more.
Station placement: Take advantage of the flexibility of modular solution if your product or process demands it

Missed our SwiftCell Webinar?

In our SwiftCell™ Webinar Recording, you’ll discover the origins of the ATS SwiftCell™ and the customer and market needs it was designed to meet. Gain a comprehensive technical overview of the base modules, features, process options, functionality grid, benefits, and scalability – from clinical trials to full automation. You’ll also get exclusive video insights into the brand-new ATS Demo SwiftCell™ in St. Georgen, including real-life applications in assembling the Ypsomate Autoinjector.

View On-Demand

That’s a really smart, innovative way to transition from clinical trials to full automation

Big European autoinjector manufacturer

Accessible Automation for Low-volume Assembly and Trayhandling

The SwiftCell™ family of advanced standardized assembly modules is designed to meet the highest regulatory standards making us the go-to choice for leading medical devices manufacturers in the low volume sector.
