Synchronous Cam Drive Linear Assembly

ATS JETWING™

High speed, modular system for semi- and fully-automated assembly for product development, pilot, and production purposes. An exceptionally versatile, compact, linear assembly platform.

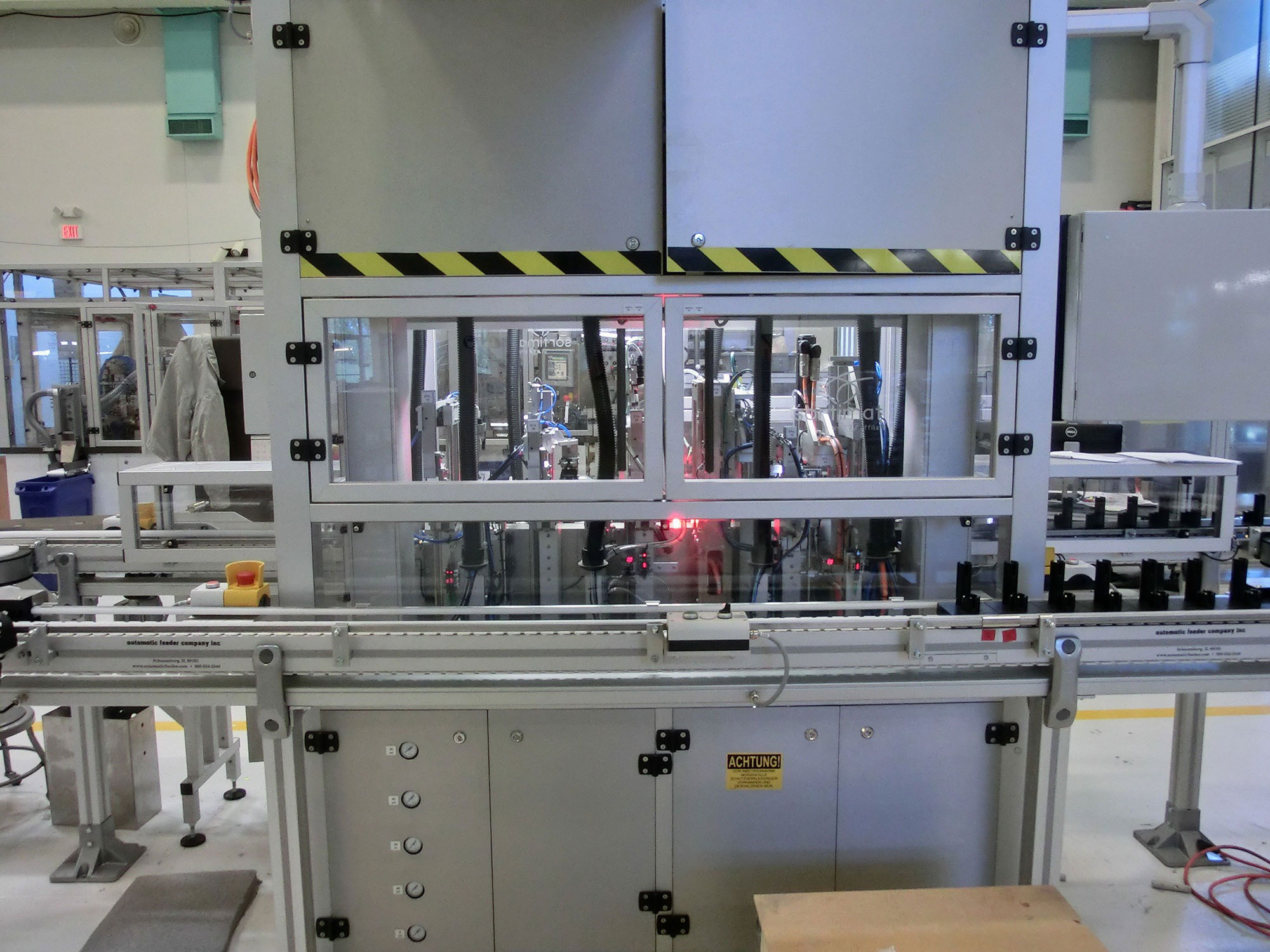

ATS JETWING™

Based on standard modules that can be easily combined for a tailored assembly line, making you more responsive to changing market demand

Optionally for cleanrooms up to Class 8
Customization options such as manual workstations, feeder units or tray handlers
Perfect for manufacturing high volumes of items with short lifecycles

DOWNLOAD BROCHURE

OVERVIEW

SPECS

Features

Quick retooling of stations to accommodate new products or variants
Quick retools, combinations of stations via interfaces, introduction of new stations/modules or product changes
Can be combined with manual workstations

Applications

Ideal for products with a small number of parts, or ones still under development
Reusable: Individual functions can be replaced
Ideal for the product development phase and assembling large quantities of products with short lifecycles

Recommended For

Specially developed for assembling items that need to go into production quickly or require frequent design change
Pumps, tube sets, blood collection, syringes, inhalers, and other medical devices
Multiple-track assembly possible

Specs

Base system dimensions: 1120 x 1540 x 2300mm
Number of stations: up to 16
Number of Tracks: multiple-track assembly possible
Synchronous cam drive linear assembly

Cycle speed: infinitely variable, up to 80 cycles per minute
Cleanrooms: Suitable up to class 10,000 / ISO 7
Optionally for cleanrooms up to Class 8
Output rates up to 80 ppm (depending on product)
Can also be configured with pneumatic and/or linear motion technology

Positional accuracy: +/- 0.02 mm
Pallet sizing: 100 x 100 and 200 x 100 mm
Modular design; twin drive; short lead times and rapid retooling

Key Benefits

Exceptionally Versatile

Quick retooling of stations to accommodate new products or variants. Perfect for manufacturing high volumes of items with short lifecycles, and for both semi- and fully-automated assembly.

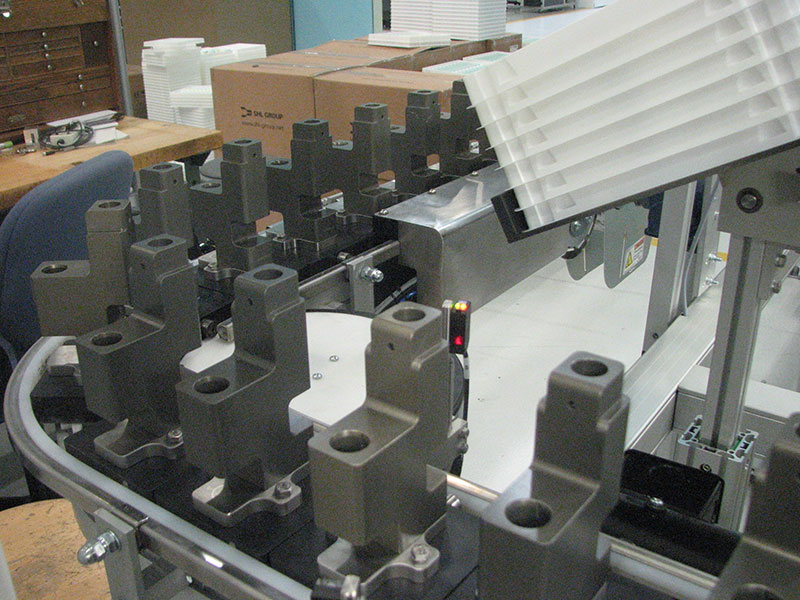

The Right Drive

Jetwing is equipped with a twin drive, comprising a cam drive for the stations with a servomotor-powered spindle drive for trays. The pallets are mechanically indexed forward on the assembly platform, and returned via a conveyor belt.

Modular

Connect the standard platform, functional stations, test/inspection and transfer modules via standard interfaces to create an end-to-end solution. Stations can be quickly retooled for new products or variants.

Customizable

A wide variety of customization options such as manual workstations, feeder units or a tray handler. Interlink up to six Jetwings to handle even very complex tasks. All process technologies and testing systems can be integrated, such as vision systems and tests for leakage and back pressure.

Resources

BROCHURE

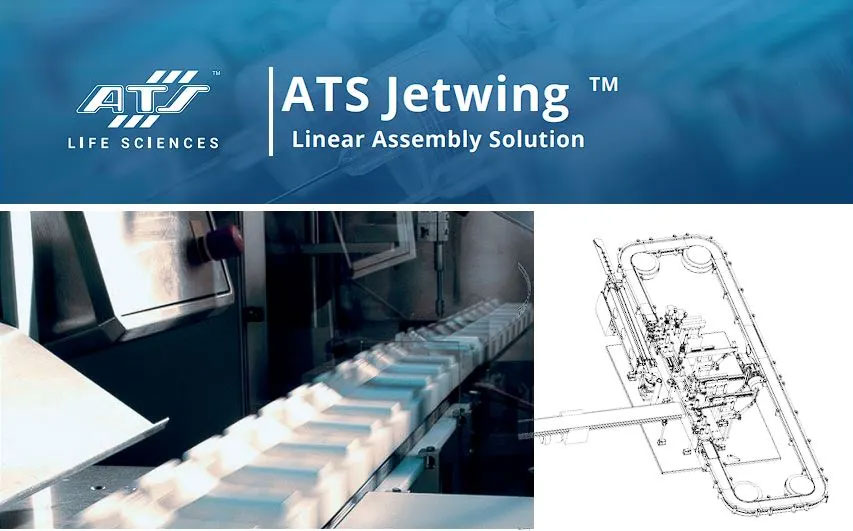

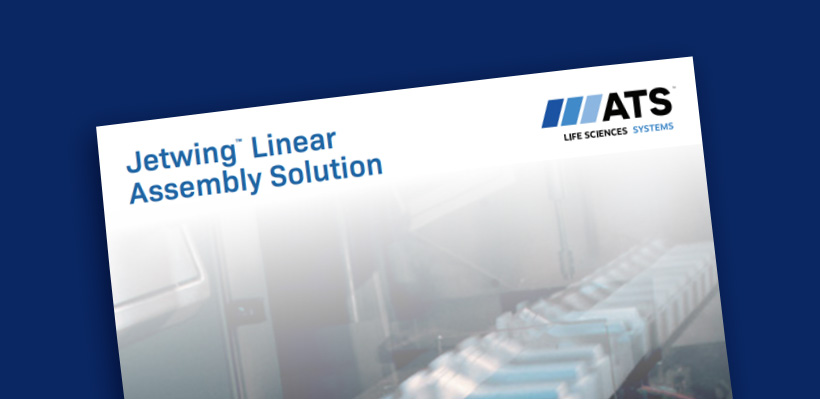

ATS JETWING™ – Linear Assembly Solution

Jetwing was specially developed for assembling items that need to go into production quickly or require frequent design changes.

DOWNLOAD

VIDEO

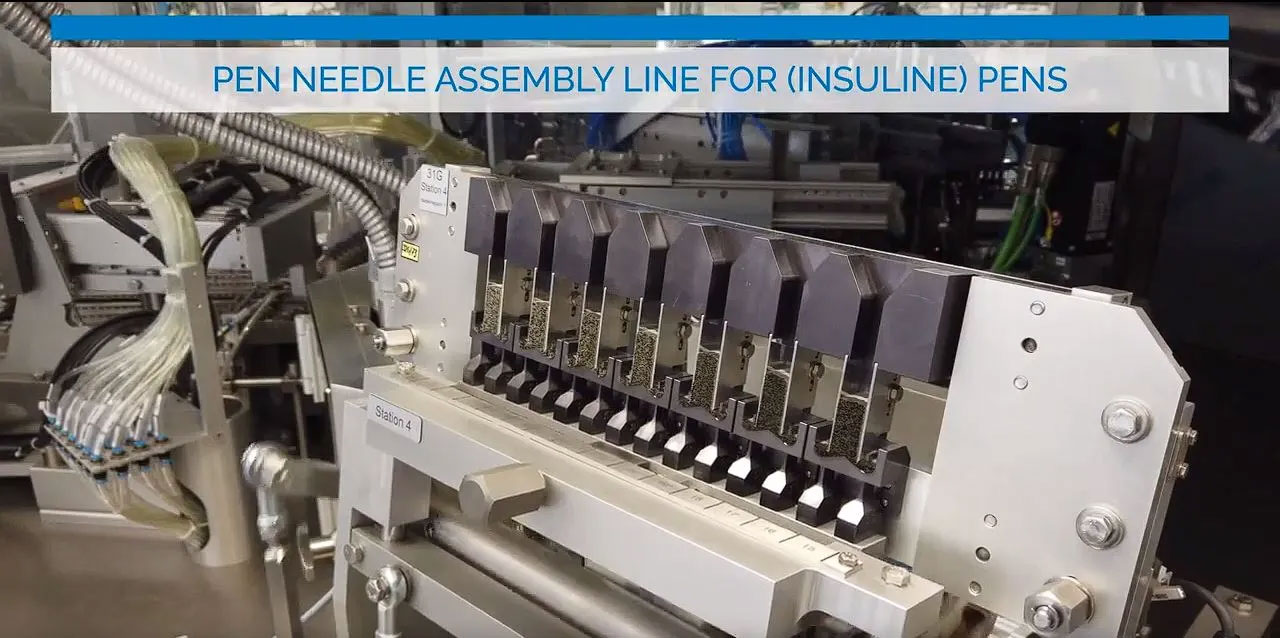

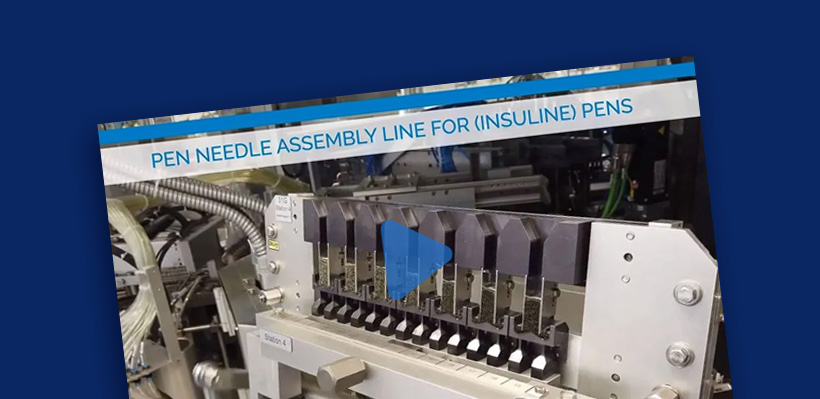

Pen Needle Assembly

UV adhesive, siliconization, to control and packaging of assembled pen needle.

Watch now

Looking For a Flexible Partner?

Jetwing was specially developed for assembling items that need to go into production quickly or require frequent design changes. We’re ready when you are.
