SuperTrak CONVEYANCE™ Spare Parts List
For a spare parts list specific to your SuperTrak HORIZON10™ and SuperTrak VERTICAL10™ systems, contact us at spares@ats-automation-develop.go-vip.net/supertrakconveyance.
When placing an order, please note the part number and then use the button below to contact us.
Wiring and Cables
| Supertrak CONVEYANCE™ Part Number | Where Used | Description | Image |
|---|---|---|---|
| SP-1061547 | Straight Section FME* | Encoder cable – 548mm |  |
| SP-1061479 | Straight Section FME* | Thermistor – 300mm |  |
| SP-3708400 | All Sections | Ethernet network cable |  |
| SP-1060325 | Straight Section FME* | Ribbon cable – 298mm |  |
| SP-1060322 | Straight Section FME* | Ribbon cable – 57mm |  |
| SP-1060323 | Straight Section FME* | Ribbon cable – 32mm |  |
| SP-1060484 | 180 Degree Section 500mm | Ribbon cable – 152mm |  |
| SP-1060483 | 180 Degree Section 500mm | Ribbon cable – 241mm |  |
| SP-1060324 | Straight Section FME* | Ribbon cable – 273mm |  |
| SP-125312033 | 180 Degree Section 800mm | Ribbon cable – 110mm |  |
| SP-2524060 | F-F Coupler | Left and right gateway ground connection point |  |
* Front Mounted Electronics
Shuttles
| Supertrak CONVEYANCE™ Part Number | Description | Image |
|---|---|---|
| SP-25210148-PK | Anti-static brush (Pack of 10) |  |
| SP-1060536 | Anti-tip block |  |
| SP-1060558 | Flat wheel and bearing sub-assembly |  |
| SP-1060527 | V-wheel & bearing sub-assembly |  |
| SP-1060816 | Lubrication felt |  |

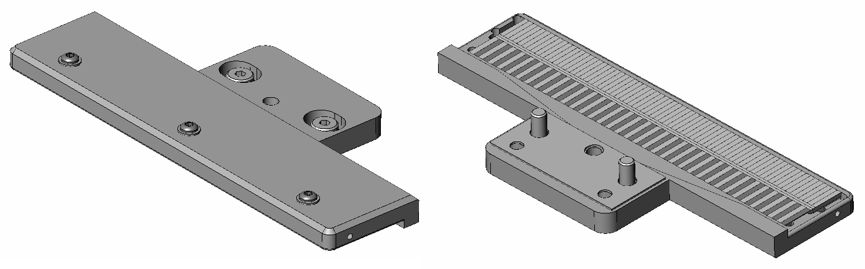

| SP-1060543 | Shuttle encoder strip assembly |  |
| SP-1061122 | Shuttle IR tag assembly |  |
| SP-1060746 | Shuttle magnet assembly – 2 magnets |  |
| SP-1060516 | Shuttle magnet assembly – 3 magnets |  |
| SP-1837179 | Magnetic encoder strip viewing film (Pack of 5) |  |
| SP-25172729 | Shuttle removal tool |  |
Circuit boards
| Supertrak CONVEYANCE™ Part Number | Description | Image |
|---|---|---|
| SP-25211311 | Coil driver board |  |
| SP-25211309 | Gateway board |  |
Encoder
| Supertrak CONVEYANCE™ Part Number | Description | Image |
|---|---|---|
| SP-1060304 | Straight magnetic encoder assembly |  |
| SP-1060408 | 180 deg. (500mm) section RH encoder assembly |  |
| SP-1060415 | 180 deg. (500mm) section LH encoder assembly |  |
| SP-25233511 | 180 deg. (800mm) section LH encoder assembly |  |
| SP-25233529 | 180 deg. (800mm) section center encoder assembly |  |
| SP-25234158 | 180 deg. (800mm) section RH encoder assembly |  |
| SP-125526388 | 90 deg. section LH encoder assembly |  |
| SP-125526394 | 90 deg. section RH encoder assembly |  |
Rail
| Supertrak CONVEYANCE™ Part Number | Description | Image |
|---|---|---|
| SP-1060390 | Straight upper v-rail – 999.5mm |  |
| SP-1060640 | Wear Strip – 500mm 180 deg section Transition |  |
| SP-25284328 | Wear Strip – 800mm 180 deg section & 90 deg section Transition |  |
| SP-125595093 | Wear Strip – 90 deg section to 90 deg section |  |
| SP-1060669 | Wear Strip (1000mm) |  |
| SP-1060389 | Wear strip locator |  |
Miscellaneous
| Supertrak CONVEYANCE™ Part Number | Description | Image |
|---|---|---|
| SP-4234040-PK | Coil driver fuse (Pack of 10) |  |
| SP-25194869 | Straight motor cover |  |
| SP-25194872 | 180 deg. (500mm) section motor cover |  |
| SP-25237933 | 180 deg. (800mm) section motor cover |  |
| SP-125564940 | 90 deg. section motor cover |  |
| SP-25202314 | IR reader assembly |  |
| 25270337 | Motor Power Supply – 1.5M DC Cable |  |
| SP-3708389-PK | Plastic hole plugs; size 15 (Pack of 10) | N/A |
| SP-3708611-PK | Power supply 50A fuse (Pack of 5) |  |
| SP-0405-0144-101-PK | Power supply exhaust filter (pack of 10) | N/A |
| SP-7325131 | High Performance i3 SuperTrak™ CONTROLLER | N/A |
