Unlock the Power of Smart Conveyance

With TrakMaster™ software, high speed and precision are only the beginning.

Motion in an asynchronous system is complex

Accurate motion simulations early in the design phase remove engineering complexity and allow system designers to optimize design and performance for a better ROI.

TrakMaster →

Implementing an asynchronous system is challenging

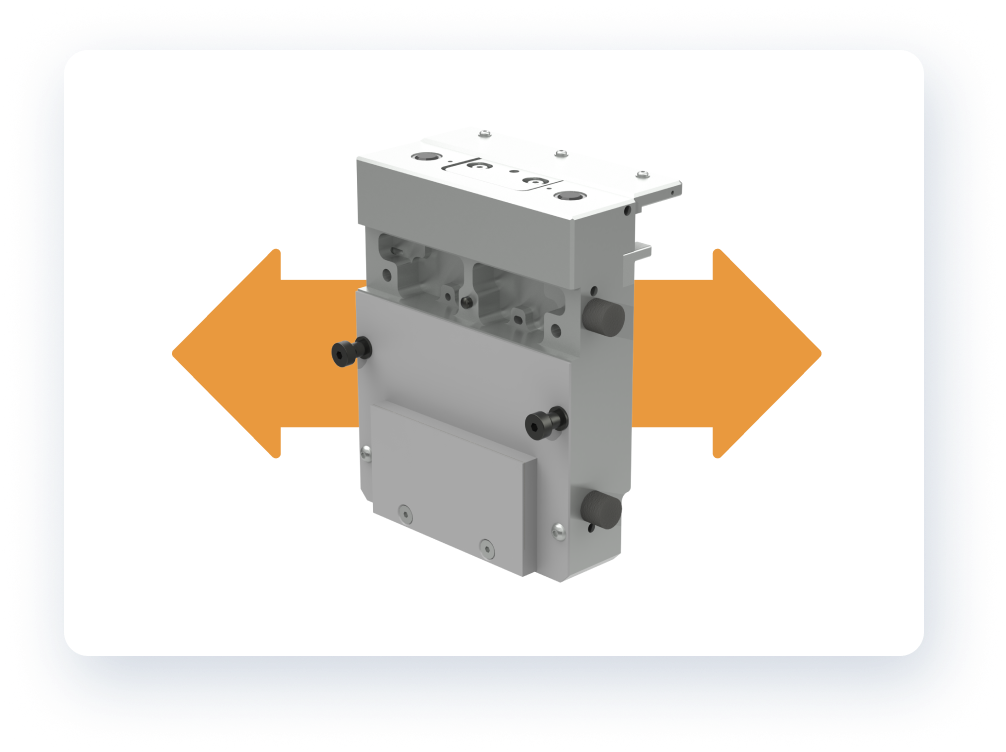

SuperTrak CONVEYANCE™ natively manages motion through independent shuttle control and eliminates challenges associated with programming an asynchronous system.

Independent Shuttle Control →

Machine integration requires a high degree of skill to meet tight deadlines

Integration hours and complexities are removed by the intuitive PLC interface and simple function blocks.

AOIs & Function Blocks →

TrakMaster™ software is an AGNOSTIC SOFTWARE Suite that Unlocks The power of asynchronous motion

DOWNLOAD TRAKMASTER™ SOFTWARE

System Simulations

to optimize processes, evaluate performance requirements, and understand energy consumption.

Diagnostic Tools

for fault handling and recovery, system status, and highlights station metrics (cycle time, shuttle transfer, etc.) for optimization and improved OEE.

Simple Configuration

of the platform’s integrated functionality to remove risk and engineering time by utilizing tested and proven capability.

Integrated Functionality

Take the complexity out of the MOTION

Just tell the shuttles where to go and forget them – the track natively manages the motion and tells you when each shuttle reached its target.

The platform’s integrated functionality removes the barriers inherent to asynchronous motion.

SuperTrak’s controller software can be configured with TrakMaster™ software and/or live with the PLC. Setting motion configurations and targets using TrakMaster™ software synchronizes the release of shuttles with the PLC enables faster implementation and easier diagnostics.

Targets

Configuring the destination of each shuttle, at each step of the process.

Position Triggers

Ability to trigger external devices to perform actions on the fly.

Pre-Arrival Notifications

Communicating timing so that tooling is ready to work as soon as the shuttle arrives.

Pre-Stops

Configuring the destination of each shuttle, at each step of the process.

Interface I/O

Configuring the destination of each shuttle, at each step of the process.

Offsets

Allow for optimizing the system in a simple fashion, and can easily activate offsets from PLC

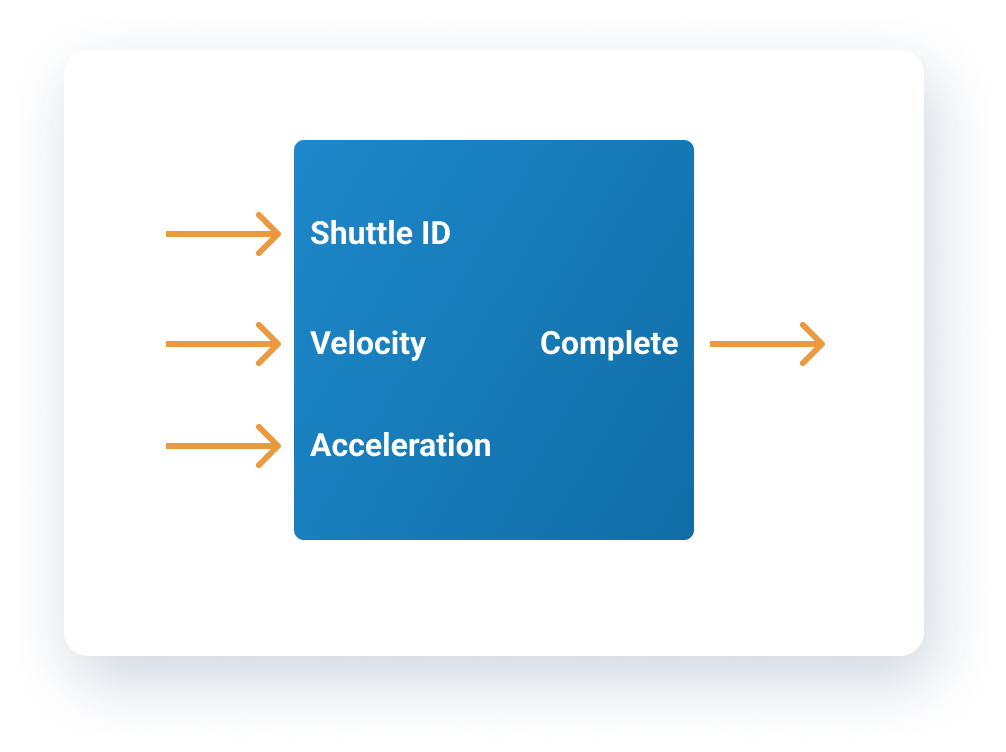

AOIs & Function Blocks

High Performance – Simple Control

SuperTrak CONVEYANCE™’s PLC function blocks provide an intuitive interface to control shuttle motion, access data, and set parameters. This removes significant time from programming and integration and allows you to get up and running quickly.

Implement the SuperTrak CONVEYANCE™ platform with your PLC of choice.

Discover TrakMaster™ Software

Register for SuperTrak Academy 401 (ST401) to explore the user interface for SuperTrak CONVEYANCE™. Learn more about TrakMaster™ software and how it helps:

optimize system performance through simulations

configuration of integrated functionality

diagnostic tools offer system optimization

team@ats-automation-develop.go-vip.net/supertrakconveyance

Resources

How-Simulation-Supports-Better-Automation2

Design Asynchronous Automation with System Simulations

Simulations are beneficial for designing efficient conveyance with asynchronous automation.

LEARN MORE

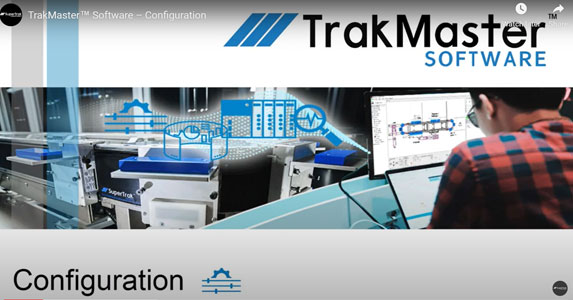

TrakMaster™ Software – Configuration

TrakMaster™ software is the user interface for SuperTrak CONVEYANCE™ platform high performance automation with less risk.

WATCH NOW

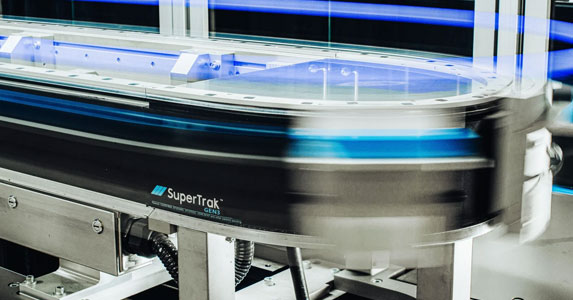

SuperTrak GEN3™ Design Package

Start designing your system with SuperTrak CONVEYANCE™ to discover the benefits of Smart Conveyance.

DOWNLOAD

TrakMaster™ Software

Request a Simulation

TrakMaster™ Software Enables Smart Conveyance

TrakMaster™ software is the user interface for the SuperTrak CONVEYANCE™ platform, providing a means to:

Create System Simulations
Configure Integrated Functionality
View System Performance Statistics
Access Diagnostic Tools

Unlike other conveyance platforms, TrakMaster™ was designed and built with the intent to reduce engineering and integration hours, offering machine builders and manufacturers a faster path to production. The easy to use software empowers an intuitive PLC interface to control the SuperTrak™ platform’s high-performance capability with less engineering and therefore less risk.

Simulation

TrakMaster™ software enables better designs.

Simulation is the connection between conceptualization and design. TrakMaster™ simulation provides a way to optimize processes, evaluate performance requirements, and understand energy consumption.

The simulation software in TrakMaster™ features:

Intuitive graphical interface
Performance optimization tools
Power and thermal modeling

Configuration

TrakMaster™ software enables high performance.

Access and configure the SuperTrak CONVEYANCE™ platform’s integrated functionality to remove risk and engineering time by utilizing tested and proven capability.
